LS Series OEM Laser Diode Module Spec Page General: Ultra compact housing design (only 7 mm diameter) Small beam size Competively priced Available in 3 wavelengths Auto power control Low power consumption Power stabilized Reverse polarity protection Princing: All red OEM laser module princing is located on the Pricing & Policies page. Outside dimensions (units are in mm):

  LS Shown (with Leads and #2 Pencil)


LS Series Details LS - 670 LS - 650 LS - 635 Operating Voltage: 3 to 6 VDC 3 to 6 VDC 3 to 6 VDC Operation Current: < 50 mA < 50 mA < 50 mA Optical Output Power:* 0.5 to 2.5 mW 0.5 to 2.5 mW 0.5 to 2.5 mW Wavelength:* 670 +/- 10 nm 650 +/- 10 nm 635 +/- 10 nm Beam Size: 3 mm x 1.5 mm 3 mm x 1.5 mm 3 mm x 1.5 mm Divergence: < 2 mrd < 2 mrd < 2 mrd Optics: Aspherical plastic lens Aspherical plastic lens Aspherical plastic lens Case Material: Copper Copper Copper

Some Custom Modules Shown Below:
The LS Optical Assembly (front 11 mm) can have a LQ Series PCB added to it for a Very Compact module:

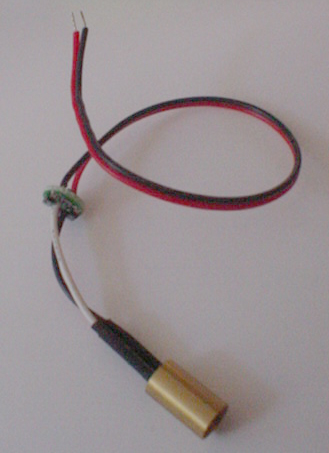

     Custom LS Module (shown w/ LQ Series PCB In-Line- 3 leads to diode, not aparent.)

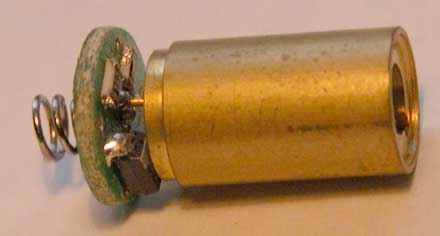

Custom LS Module (shown w/ Spring Contact, also available with Leads) CALL


	* Please specify this value when ordering.

	Ordering Format Please use the following format when ordering.  The underlined values need to be specified by you:     LS - opical power output -  wavelength     For example, your order may look like this: LS - 2.5 - 650
